Product Overview

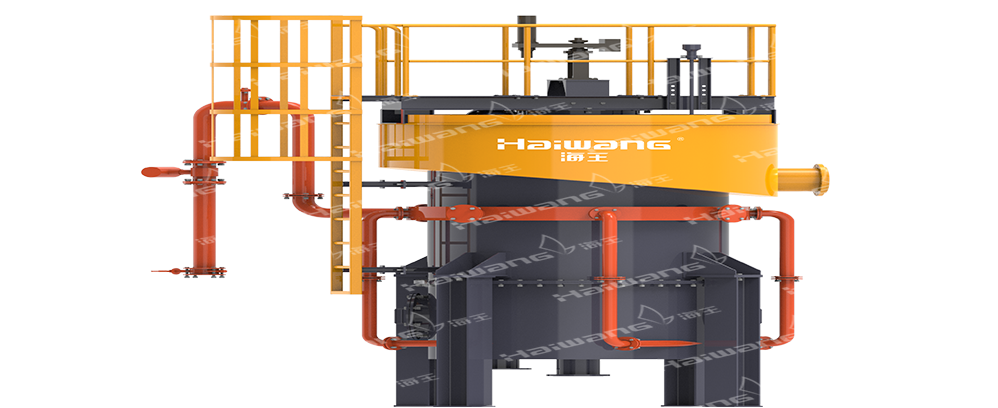

Product general introduction:CF Series Counter-flow Sand Washer

The CF series counter-flow sand washer is a sand washing equipment that utilizes the upward water flow to create a stable interference settling atmosphere in the machine, achieving the separation of mud and sand based on the different settling velocities due to interference settling. It features high mud removal efficiency, low water consumption, adjustable sand powder content in the product, low operating power consumption, and automatic control. It can be used for the de-dusting of manufactured sand, de-mudding of natural sand, soil sand selection, and other processes. It also exhibits good adaptability to conditions with high powder or mud content.

Specification

Model	Capacity（t/h）	Cut size (mm)
CF1800	50-80	0.1-0.15
CF2400	100-150	0.1-0.15
CF3000	150-200	0.1-0.15
CF3600	200-250	0.1-0.15
CF4200	250-300	0.1-0.15

Technical feature

• The high cleanliness of sand washing

Utilizing the interference settling principle for sand washing, mud and sand are separated in two directions, reducing the clay content in the sand and still achieving good results for materials with high clay content.

• Adjustable sand powder content in the product

By adjusting the upward water flow, the classification particle size is regulated, thereby controlling the content of sand -0.15mm in the product.

• High degree of automation

Designed with fully automatic control and unmanned operation, automatically discharging based on monitoring the bed density.

• Low operating costs

Low power consumption, only the control circuit requires electricity, and it uses less water compared to conventional sand washers

• Low equipment dynamic load

With no large operating components, the equipment has a low dynamic load, resulting in low civil construction costs.

XFS Series Sand Washing Fine Sand Recovery Integrated Machine

Product general introduction

The XFS series Haiwang sand washing and fine sand recovery integrated machine integrates three processes: bucket sand washing, fine sand recovery, and product dewatering. It mainly includes six components: a sand washing bucket, a sand washing trough, a cyclone (group), a cyclone feed pump, a under-screen pump pool, and a linear vibrating dewatering screen. It features a compact structure, small footprint, high sand washing efficiency, simultaneous discharge of coarse and fine sand, and uniform mixing.

specification

Modle	Capacity（t/h）	Washing Water Volume（m³/h）	Recovery Particle Size/mm（mm）	Reference Power (kW)
XFS100	50-100	100-150	＞0.074	49.9
XFS150	100-150	150-200	＞0.074	65.5
XFS200	150-200	200-300	＞0.074	74.5
XFS250	200-250	250-400	＞0.074	123
XFS300	250-300	300-450	＞0.074	142
XFS400	350-400	400-600	＞0.074	180.5
XFS500	400-500	500-750	＞0.074	237
