Product Overview

Types of Instruments in Haiwang Intelligent Monitoring System：Haiwang vibrating screen intelligent monitoring system mainly includes hardware such as detection instruments and micro PLC platforms, as well as software systems.

Specification

Types of Detection Instruments

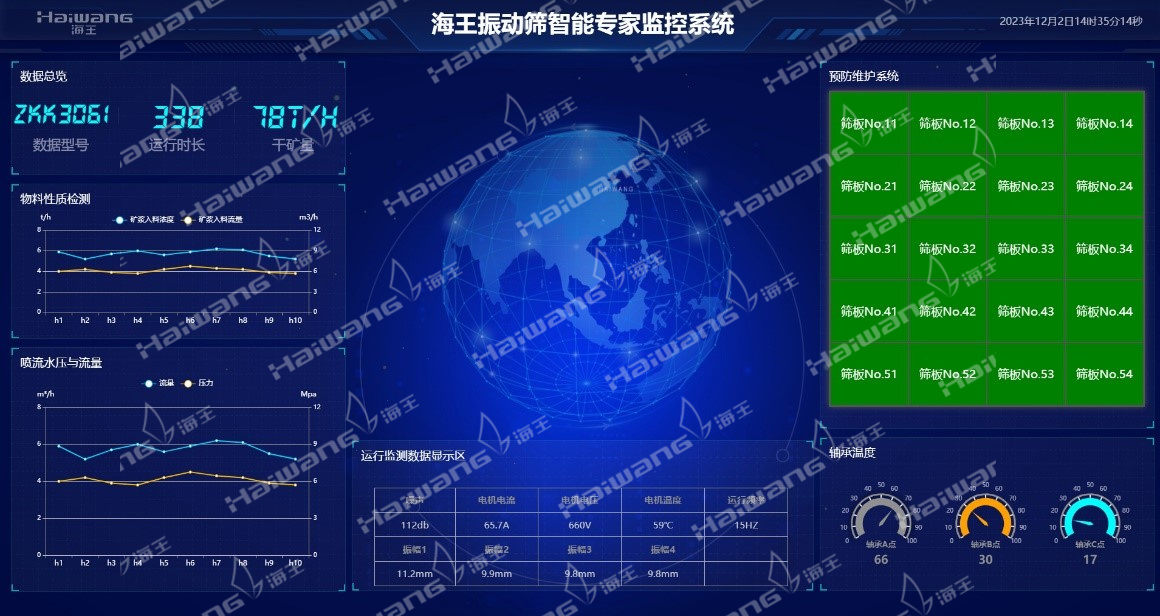

Haiwang Intelligent Monitoring System

Utilizing 5G Internet of Things (IoT) technology, the Haiwang Intelligent Monitoring System monitors the parameters of vibrating screens and material properties. It conducts data comparison and analysis based on self-generated historical information, enabling fault early warning and preventive maintenance. The system achieves comprehensive intelligent control for all-round functionality.

Motor Temperature Detection and Warning

An internal or external online temperature monitoring device is installed in the motor, providing real-time display of the motor temperature and allowing for the configuration of temperature warning settings.

Amplitude Detection and Warning：Vibration monitoring of the screen body can automatically issue warnings based on inconsistencies in amplitudes, side swings, and other factors detected on both sides.

Noise Detection and Warning：Using a noise meter, monitor the operational sound of the vibrating screen and issue automatic warnings based on the detected noise levels.

Current Detection and Warning：By continuously monitoring the electrical current, integrate measurement, protection, communication, and display functionalities into a single system.

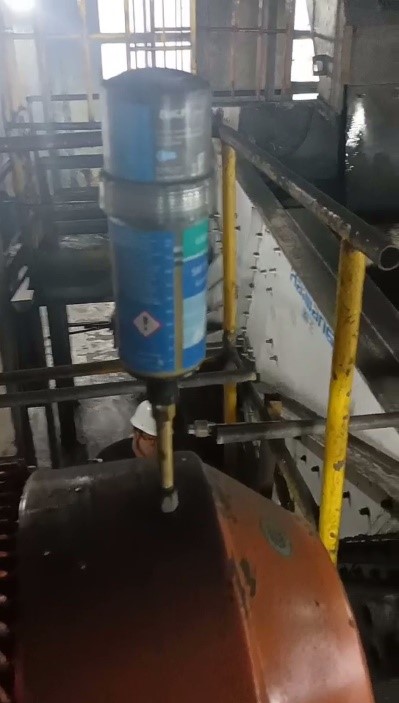

le Point Automatic Lubrication：Install single-point lubricators on non-rotating components such as the transmission motor and sub-shaft bearing seat of the vibrating screen to achieve automatic oil lubrication. Remote monitoring and control can be performed to ensure proper and effective lubrication of the equipment.

Technical Features

• Three-dimensional acceleration and velocity are the main features of the vibrating screen intelligent monitoring system, measuring the vibration of the exciter and the vibrating screen separately. It can promptly detect actual or potential faults when any possible malfunction occurs in the equipment.
• Early warning of more severe damage caused by the damage of individual components (such as bearings and gears);
• Early detection of damage such as cracks in structural components like the screen body side plates and cross beams;
• Early warning of abnormal current, voltage, and temperature leading to motor damage;
• Avoid unforeseen downtime, improve equipment operating efficiency, and implement targeted equipment maintenance plans;
• System operators can easily acquire professional knowledge about vibrating screens;
• Material property detection. Determining the incoming concentration and flow rate, calculating the incoming amount and dry ore amount, contributes to overall quality control of the product.

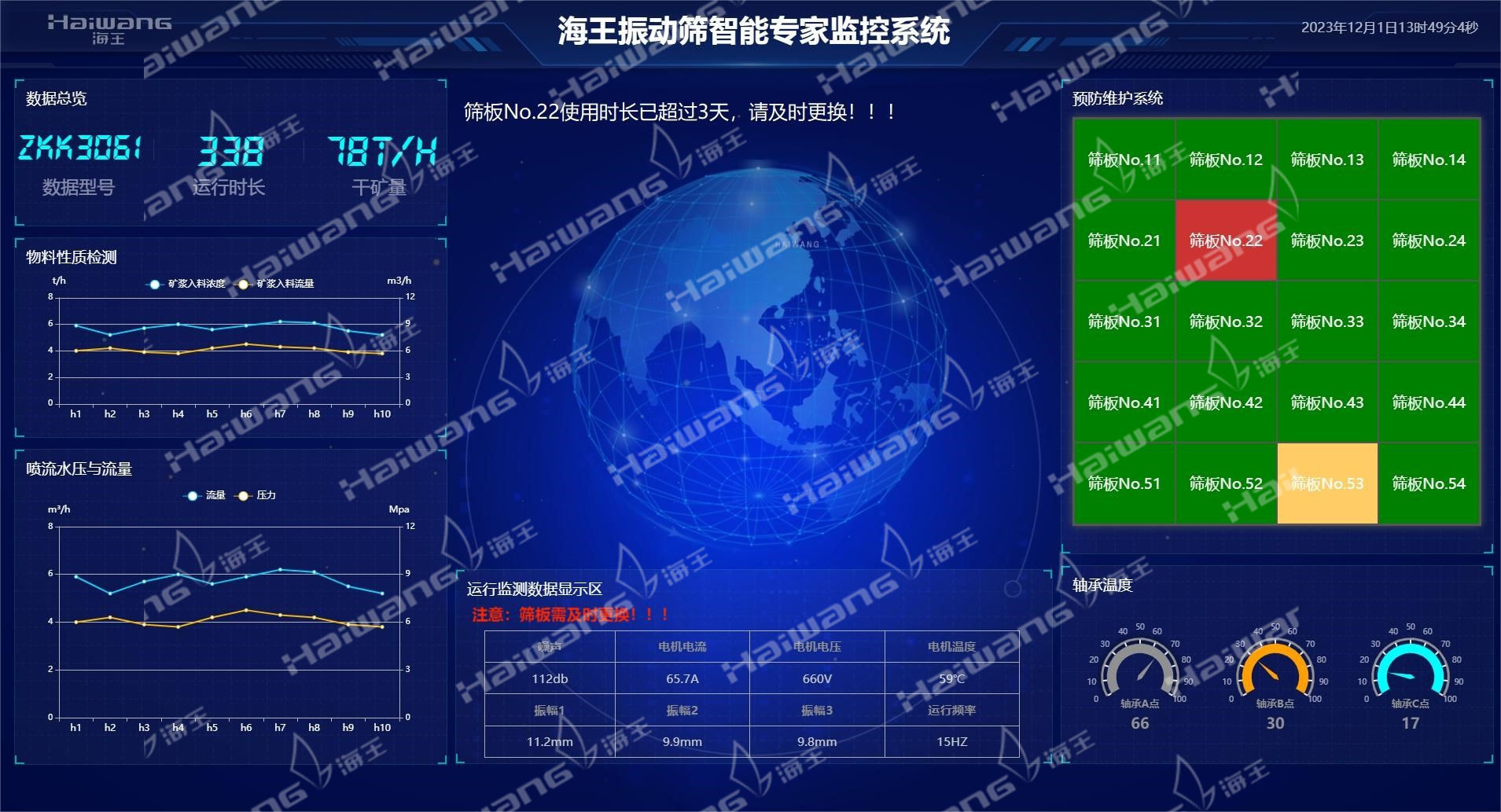

• Preventive maintenance reminders. Remind to lubricate and replace screen plates in a timely manner to ensure smooth equipment operation.
