Product Overview

Product general introduction

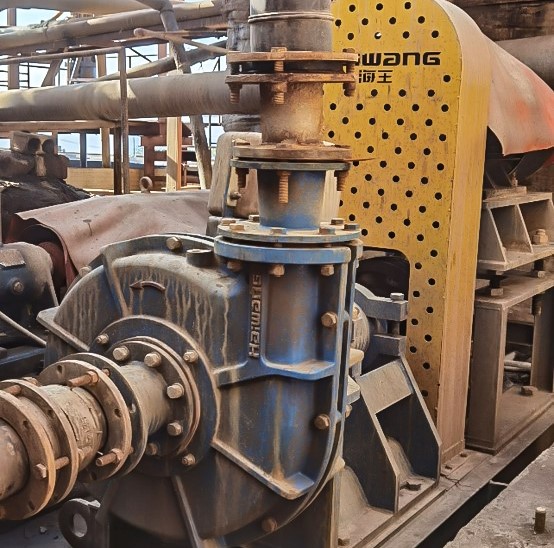

The HWCP series slurry pump developed by our company is suitable for the transport of highly abrasive materials. This series of slurry pumps features a single-stage, single-suction, and double-casing design. It incorporates advanced hydraulic model design, ensuring excellent hydraulic performance. The wearing parts of the slurry pump are available in various wear-resistant materials such as wear-resistant rubber, wear-resistant polyurethane, and wear-resistant alloy, providing a long service life. This pump is well-suited to meet the fluid transport requirements in industries such as mining, coal, metallurgy, chemical, environmental protection, and building materials.

Specification

Model	Capacity（t/h）	Cut size (mm)
CF1800	50-80	0.1-0.15
CF2400	100-150	0.1-0.15
CF3000	150-200	0.1-0.15
CF3600	200-250	0.1-0.15
CF4200	250-300	0.1-0.15

Technical feature

• Design of structure

Utilizing the interference settling principle for sand washing, mud and sand are separated in two directions, reducing the clay content in the sand and still achieving good results for materials with high clay content.

The use of a continuously variable helical blade structure and a reasonable blade wrap angle, optimized through simulation software. The hydraulic performance of the pump is characterized by high energy exchange efficiency between the blades and the medium, resulting in high pump efficiency. The load on the blades is uniform, leading to minimal impeller wear and low noise. The biomimetic volute casing design contributes to low turbulence inside the casing, minimizing wear and reducing energy loss.

• Wear-resistant materials

Our company has developed rubber and polyurethane materials specifically for slurry pump conditions. The wearing parts not only exhibit excellent wear resistance but also demonstrate good corrosion and erosion resistance.

• Other features

The internal structure is designed rationally, unaffected by slurry impact, and is non-blocking, making it applicable in various working conditions.

XFS Series Sand Washing Fine Sand Recovery Integrated Machine

Product general introduction

The XFS series Haiwang sand washing and fine sand recovery integrated machine integrates three processes: bucket sand washing, fine sand recovery, and product dewatering. It mainly includes six components: a sand washing bucket, a sand washing trough, a cyclone (group), a cyclone feed pump, a under-screen pump pool, and a linear vibrating dewatering screen. It features a compact structure, small footprint, high sand washing efficiency, simultaneous discharge of coarse and fine sand, and uniform mixing.

specification

Model	Allowable Maximum Power kW	Flow rate（m³/h）	Head/m	Rotating speed r/min	Maximum efficiency%	NPSH m	Intermittent Maximum Particle Size/mm
50HWCP-R/U	22	12-50	35	730-1480	41.4	2.9	13
80HWCP-R/U	45	46-185	40	730-1480	68.2	2.5	24
100HWCP-R/U	90	66-250	15-50	730-1480	71.0	2.5	35
150HWCP-R/U	75	115-450	10-35	490-980	78.0	2.5	48
200HWCP-R/U	200	218-850	14-50	490-980	82.7	2.5	62
250HWCP-R/U	450	300-1480	20-50	490-980	76.0	3.0	72
50HWCP-A	22	12-54	50	730-1480	41.4	2.9	13
80HWCP-A	45	460-190	51.5	730-1480	68.2	2.5	24
100HWCP-A	90	66-275	15-71	730-1480	71.0	2.5	35
150HWCP-A	75	115-460	10-50	490-980	78.0	2.5	48
200HWCP-A	200	218-870	14-60	490-980	82.7	2.5	62
250HWCP-A	560	300-1480	20.8-98	490-980	76.0	3.0	72

Industry Application

The product is widely used in the transportation of fluids in industries such as mining, coal, metallurgy, chemical, environmental protection, and construction materials.

Used for grinding and grading feed pumps in the primary stage of mines

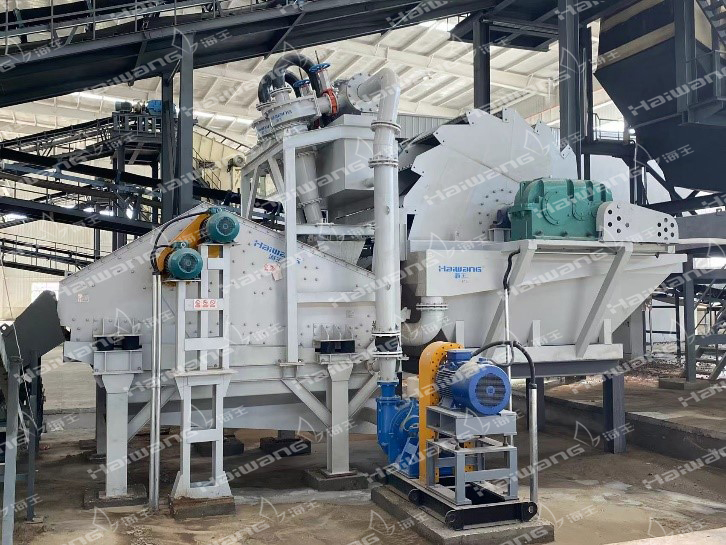

Cyclone feeding pump for Sand Aggregate Industry

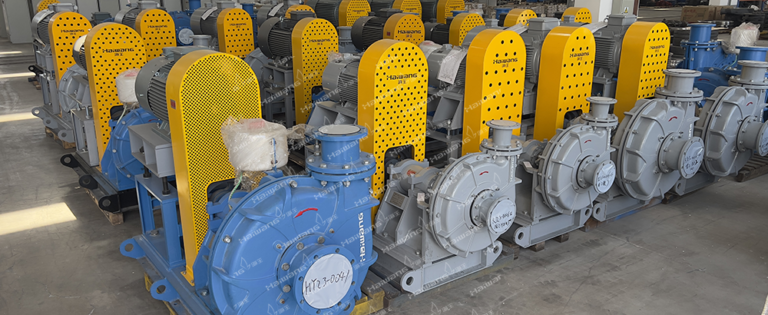

Cyclone feeding pump for acid working conditions in the metallurgical industry
