Product Overview

Product general introduction

The CF series counter-flow sand washer is a sand washing equipment that utilizes the upward water flow to create a stable interference settling atmosphere in the machine, achieving the separation of mud and sand based on the different settling velocities due to interference settling. It features high mud removal efficiency, low water consumption, adjustable sand powder content in the product, low operating power consumption, and automatic control. It can be used for the de-dusting of manufactured sand, de-mudding of natural sand, soil sand selection, and other processes. It also exhibits good adaptability to conditions with high powder or mud content.

Specification

Model	Diammer （m）	Side wall height（m）	Slope angle（°）	Capacity（m³/h）	Underflow concentration（％）	Power（kw）
HWPT-18	18	8/10/12	30	1200-2000	≥45	22/37/45
HWPT-22	22			1600-3000		37/45/55
HWPT-25	25			2200-4000		45/55/75
HWPT-30	30			3000-5200		55/75/90
HWPT-35	35			4000-7500		75/90/110
HWPT-40	40			5400-10000		90/110/132
HWPT-45	45			6800-12000		90/110/132
HWPT-50	50			8500-15000		110/132/160

Technical feature

• Featuring a deep cone with a high sidewall design to enhance concentration performance and increase underflow concentration.
• Incorporating a low turbulent flow spiral feed well to provide a more stable gravity settling environment within the machine.
• The feed is equipped with a self-dilution or forced dilution device to adjust the feed concentration to the optimal coagulation settling state.
• The low-resistance rake structure effectively reduces energy consumption, while the unique mixing structure further improves the concentration of the bottom slurry.
• Utilizing a high-torque hydraulic drive mechanism to ensure stable operation even in harsh conditions.

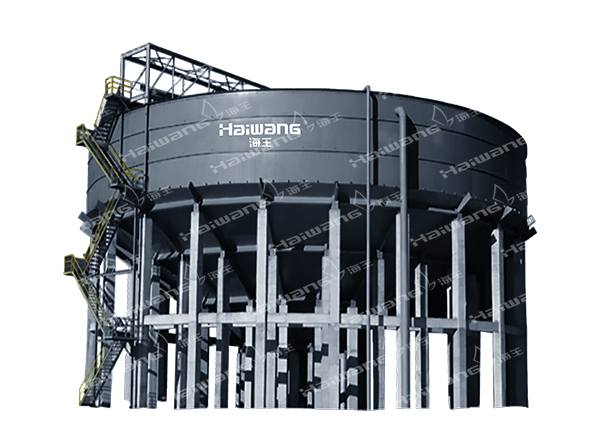

HWET series efficient thickener

Product general introduction

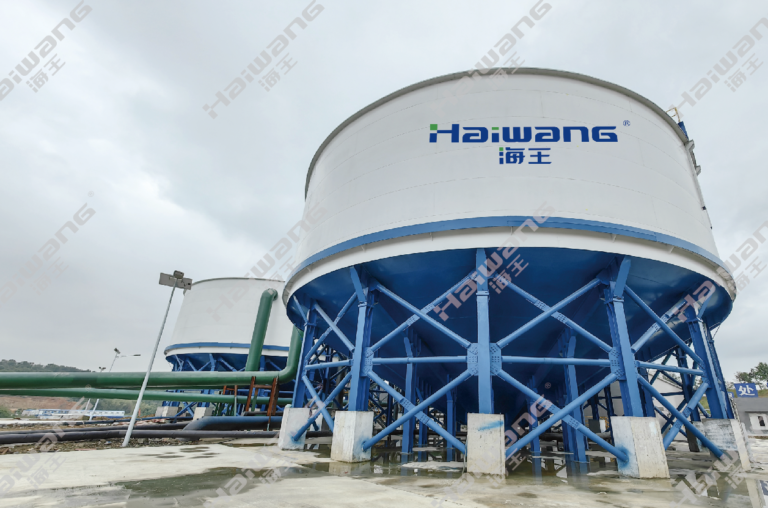

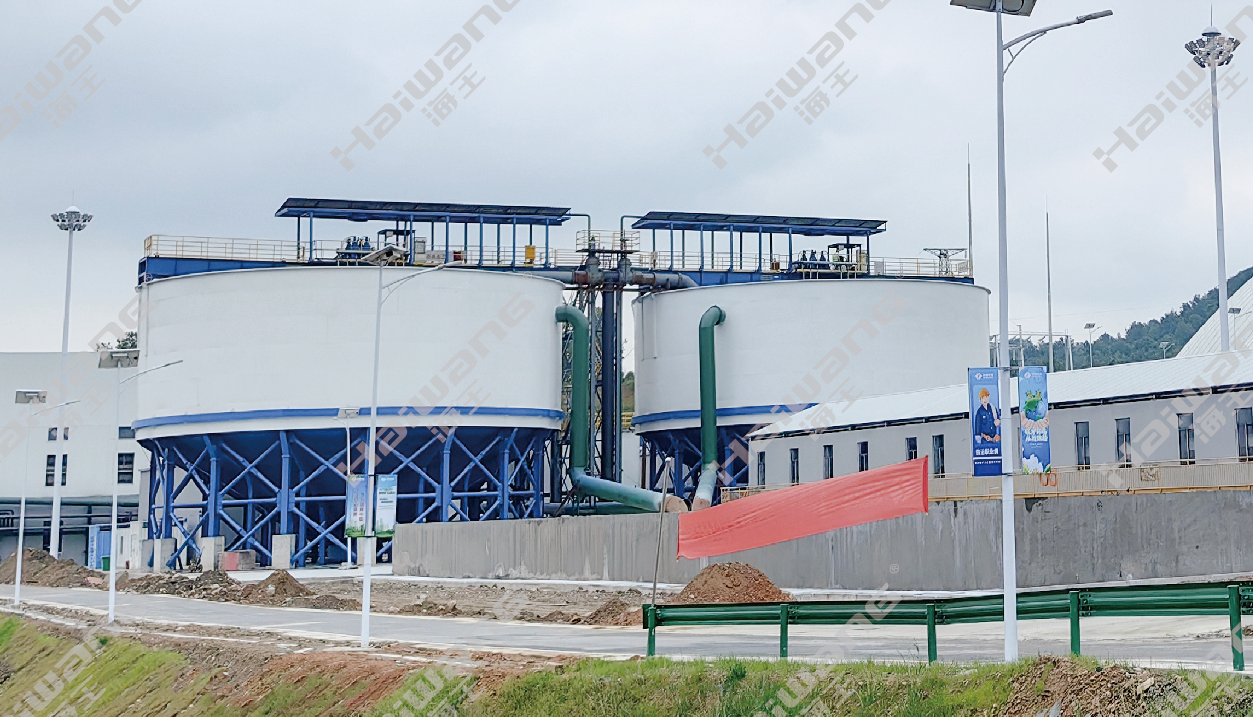

The HWET series efficient thickener is primarily used for wet aggregate production line wastewater treatment, industrial wastewater reuse, and similar conditions. It is characterized by low chemical consumption, low energy consumption, and a small footprint.

Specification

Modle	Capacity（t/h）	Washing Water Volume（m³/h）	Recovery Particle Size/mm（mm）	Reference Power (kW)
XFS100	50-100	100-150	＞0.074	49.9
XFS150	100-150	150-200	＞0.074	65.5
XFS200	150-200	200-300	＞0.074	74.5
XFS250	200-250	250-400	＞0.074	123
XFS300	250-300	300-450	＞0.074	142
XFS400	350-400	400-600	＞0.074	180.5
XFS500	400-500	500-750	＞0.074	237

Technical feature

• Incorporating a low-turbulence spiral feed well to provide a more static gravity settling environment within the machine.
• Utilizing central hydraulic drive and equipped with an automatic rake lifting device.

Specification

Model	diameter（m）	Wall Height (m)	Slope angle（°）	Processing capacity （m³/h）	Height（m）	Cone angle（°）
HWET-12	12	4.5	10	400-600	≥35	7.5
HWET-15	15			600-1000		11
HWET-18	18			900-1400		18.5
HWET-22	22			1500-2200		30
HWET-25	25			2000-3000		37
HWET-30	30			3000-4500		55
HWET-35	35			4000-6000		75
HWET-40	40			5500-8500		90
HWET-45	45			7000-11000		110
HWET-50	50			9000-14000		110

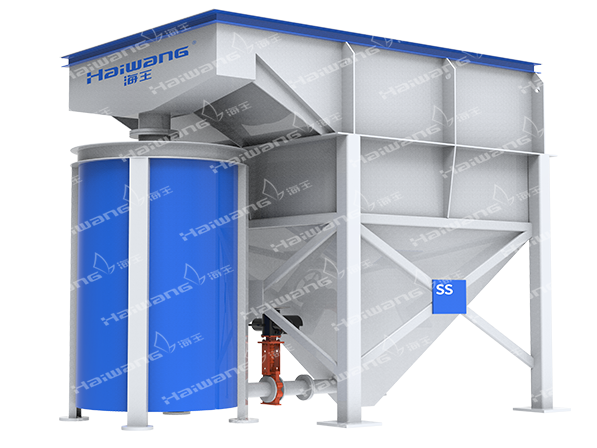

HWITT series deep cone inclined plate thickener

Product general introduction

The HWITT series deep cone inclined plate thickener is primarily used for wet aggregate production line wastewater treatment, industrial wastewater reuse, and similar conditions. It is suitable for low concentration (<10%) feed and is characterized by a small footprint and high settling efficiency.

Technical feature

• Dividing the settling zone into multiple inclined narrow-flow regions using inclined plate components, processing them in parallel to enhance concentration efficiency, and reducing the footprint.
• Incorporating a low-turbulence spiral feed well to provide a more stable gravity settling environment within the machine.
• Utilizing a deep cone structure with passive slurry discharge, resulting in low energy consumption.

specification

Model	Maximum Processing Capacity (m³/h)	Mud content（t/h）	Diameter（m）	Height（m）	Cone angle（°）
HWITT1500	1500	100-150	17	19	60
HWITT1200	1200	80-120	15	17
HWITT1000	1000	70-100	14	17
HWITT800	800	50-80	13	16
HWITT500	500	30-50	10	13
HWITT300	300	20-30	8	12

HWIPT series deep cone inclined plate thickener

Product general introduction

The WIPT series deep cone inclined plate thickener is primarily used for water purification treatment, ore dressing engineering pulp thickening and grading, and similar conditions. It is suitable for low concentration (<10%) feed and is characterized by a small footprint and high settling efficiency.

Technical feature

• Utilization of Shallow Settling Principle: By employing the shallow settling principle, the settling zone is divided into multiple inclined narrow-flow regions using inclined plate components. This allows for parallel processing in multiple regions, enhancing concentration and grading efficiency while reducing the footprint.
• Configurable Inclined Plate Vibration Cleaning Device: The system can be equipped with an inclined plate vibration cleaning device for periodic cleaning of the inclined plates.

specification

Model	Inclined plate settlement area（m³/h）	Capacity（m³/h）	Cone angle（°）
HWIPT150	150	120-150	55
HWIPT250	250	200-250
HWIPT500	500	400-500
HWIPT800	800	650-800
HWIPT1000	1000	800-1000
HWIPT2000	2000	1600-2000
