Product Overview

Haiwang vibrating screens use steel material of superior quality, and adopt leading equipment and technology in the industry for material preparation, welding, heat treatment, machining, surface treatment, assembly, test and quality con-trol processes, including the domestic leading processing equipment and production line, such as high power fiber cutting machine, automatic welding robot, shot blasting & derusting assembly line, and painting robot, which realize complete automatic manufacturing process, and guarantee the product quality and production efficiency comprehensively.

Equipment model serialization：

Haiwang ZKJ series specifications range from ZKJ1007-D(1-5), ZKJ1007-D(1-5)/3;ZKJ1208-D(1-5), ZKJ1208-D(1-5)/3;ZKJ1408-D(1-5), ZKJ1408-D(1-5)/3;Individual machines achieve a processing capacity of 5-60 t/h with a classification efficiency of over 80%;For specific models, processing capacity, and other technical parameters, please contact our company.

Technical characteristics

• Operation Perception System：This part monitors parameters such as motor operating temperature, operating voltage, operating current, vibration frequency, vibration amplitude, pulp water pressure, pulp water flow, etc.
• Material Perception System:Detects material flow and concentration, allowing for timely adjustment of the upstream addition of dilution water concentration to ensure that the feed concentration of the stacked screen remains within the most suitable range.
• Intelligent Expert Maintenance System:The intelligent expert maintenance system consists of three operational tracking logic systems. This system collects real-time data during the operation of the stacked screen and compares it with the original database parameters. When the real-time data deviates beyond the specified range from the original database, the stacked screen alarm system operates. According to requirements, various alarm methods such as sound, light, and forced power-off can be set.
• Intelligent Expert Analysis System:This system not only evaluates the operational status of the stacked screen but also, based on the particle size composition below the screen, estimates the degree of screen wear. When the wear limit value is reached, it reminds the user to replace the screen in a timely manner, enhancing the efficiency of coal preparation plant management.

Application

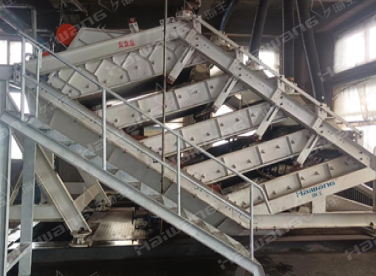

The stacked high-frequency vibrating fine screen has high screening efficiency and high precision. It is widely used in the coal preparation industry. It is also suitable for concentrate particle size control and classification in iron ore and ilmenite concentrators. It is an advanced screening equipment , which adopts high-frequency vibration and laminated composite design, and has the characteristics of high screening efficiency, high screening accuracy, and long screen life.
