Product Overview

A large amount of wastewater will be produced in the desulfurization process of power plants, and the solid content in the wastewater is 3-7%. Through the concentration treatment of Haiwang wastewater cyclone, the underflow concentration reaches 10 ~ 15% and the overflow concentration is 0.5 ~ 2%, which can meet the requirements of wastewater treatment system and reduce the energy consumption of the system.

Technical characteristics

• The advanced short-circuit flow directional suppression technology is adopted to improve the stability of wastewater slurry feeding, reduce the overflow short-circuit flow loss and improve the underflow yield.
• The advanced multi-cone nonlinear centrifugal classifying technology is used to effectively improve the centrifugal intensity of the flow field inside cyclone and optimize the concentration classifying effect;
• A variety of high-quality wear-resistant material combinations are available to be seleteed and effectively improve the operating life of cyclone.

Application

It is mainly used for the concentration treatment of desulfurization wastewater.

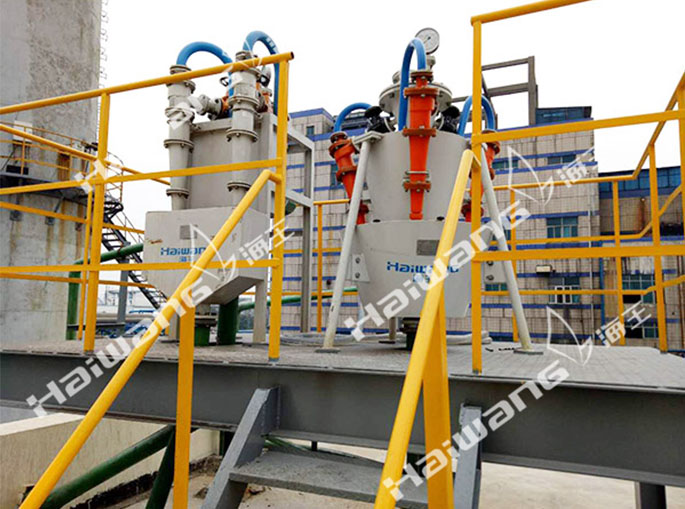

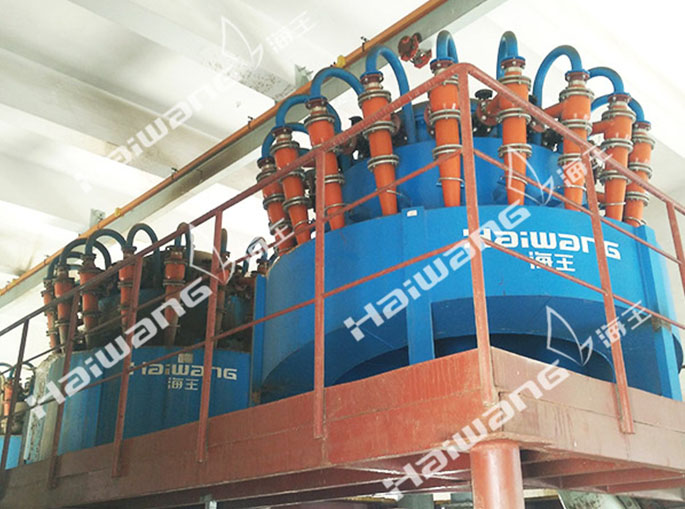

Working Site

Non-metal cyclones are mainly used for grinding classification, separation, concentration and de-watering of non-metallic minerals such as kaolin clay, bentonite and feldspar. In addition, non-metal cyclones are also suitable for classification of new materials such as photovoltaic materials and wear-resistant materials.
